Product Summary

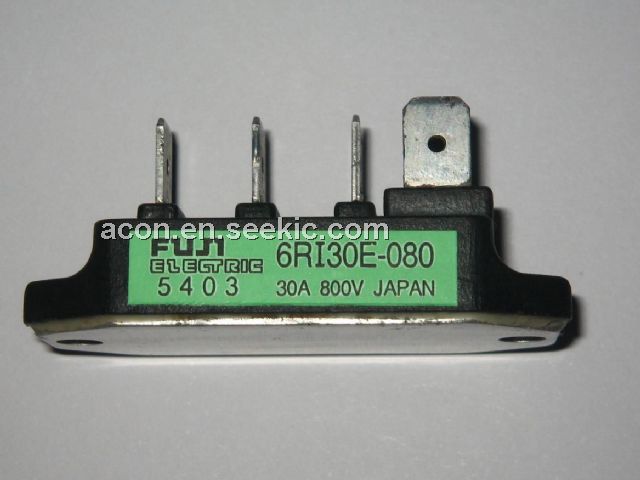

The 6RI30E-080 is a power diode module. The applications of the 6RI30E-080 include inverters for AC motors, power supply units for DC motors, DC power supply units for battery chargers, general purpose DC power supply units.
Parametrics
6RI30E-080 absolute maximum ratings: (1)Repetitive peak reverse voltage, VRRM: 1200V; (2)Non-repetitive peak reverse voltage, VRSM: 1320V; (3)Average output current, IO: 30A; (4)Surge current, IFSM: 320A; (5)I2t: 400A2S; (6)Junction temperature, Tj: -40 to 150℃; (7)Storage temperature range, Tstg: -40 to 125℃.
Features
6RI30E-080 features: (1)All the terminals and the mounting plate are electrically isolated. These modules can be installed in the same cooling fin as other modules, thus saving installation space-a cost-effective feature; (2)The diode chips are coated with a glass of zinc oxide, making them highly resistant to temperature and humidity variation; (3)6 diode chips are connected to the 3-phase bridge rectifying circuit inside the module-a cost-effective feature.

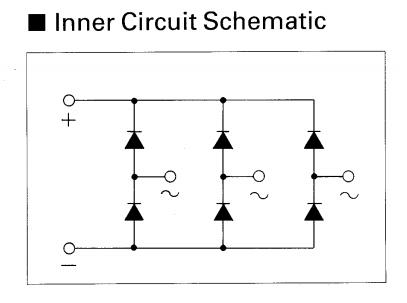

Diagrams
