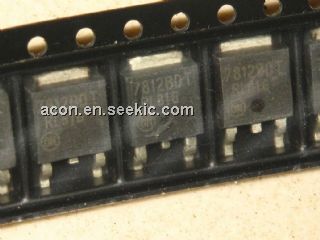

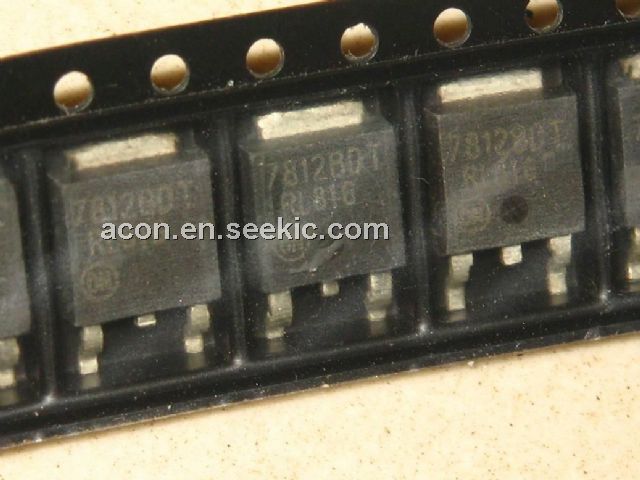

Product Summary
The 7812BDT is a monolithic integrated circuit designed as fixed−voltage regulator for a wide variety of applications including local, on−card regulation. The 7812BDT employ internal current limiting, thermal shutdown, and safe−area compensation. With adequate heatsinking they can deliver output currents in excess of 1.0 A. Although designed primarily as a fixed voltage regulator, the 7812BDT can be used with external components to obtain adjustable voltage and current.
Parametrics
7812BDT absolute maximum ratings: (1)Input Voltage (5.0 − 18 V): 35 Vdc; (2)Input Voltage (24 V): 40 Vdc; (3)Power Dissipation: Internally Limited W; (4)Thermal Resistance, Junction−to−Ambient: 65 °C/W; (5)Thermal Resistance, Junction−to−Case: 5.0 °C/W; (6)Storage Junction Temperature Range: −65 to +150 °C; (7)Operating Junction Temperature: +150 °C.
Features
7812BDT features: (1)Output Current in Excess of 1.0 A; (2)No External Components Required; (3)Internal Thermal Overload Protection; (4)Internal Short Circuit Current Limiting; (5)Output Transistor Safe−Area Compensation; (6)Output Voltage Offered in 2% and 4% Tolerance; (7)Available in Surface Mount D2PAK−3, DPAK−3 and Standard 3−Lead Transistor Packages; (8)NCV Prefix for Automotive and Other Applications Requiring Site and Control Changes; (9)Pb−Free Packages are Available.

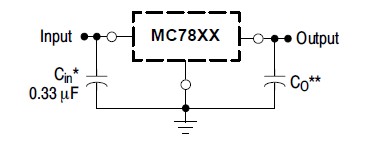

Diagrams
