Product Summary

The AD606JNZ is a complete, monolithic logarithmic amplifier using a 9-stage “successive-detection” technique. It provides both logarithmic and limited outputs. The AD606JNZ applications are: Ultrasound and Sonar Processing, Phase-Stable Limiting Amplifier to 100 MHz, Received Signal Strength Indicator (RSSI), Wide Range Signal and Power Measurement.

Parametrics

AD606JNZ absolute maximum ratings: (1)Supply Voltage VPOS: +9 V; (2)Internal Power Dissipation: 600 mW; (3)Operating Temperature Range: 0℃ to +70℃; (4)Storage Temperature Range: –65℃ to +150℃; (5)Lead Temperature Range (Soldering 60 sec): +300℃.

Features

AD606JNZ features: (1)–75 dBm to +5 dBm Dynamic Range; (2)Usable to >50 MHz; (3)37.5 mV/dB Voltage Output; (4)On-Chip Low-Pass Output Filter; (5)±1 dB Output Flatness over 80 dB Range; (6)±3° Phase Stability at 10.7 MHz over 80 dB Range; (7)Adjustable Output Amplitude; (8)+5 V Single Supply Operation; (9)65 mW Typical Power Consumption; (10)CMOS-Compatible Power-Down to 325 μW typ; (11)<5 μs Enable/Disable Time.

Diagrams

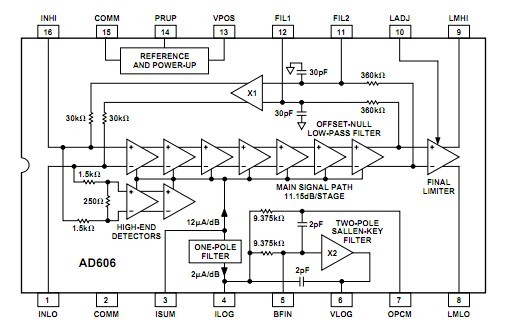

AD606JNZ block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity

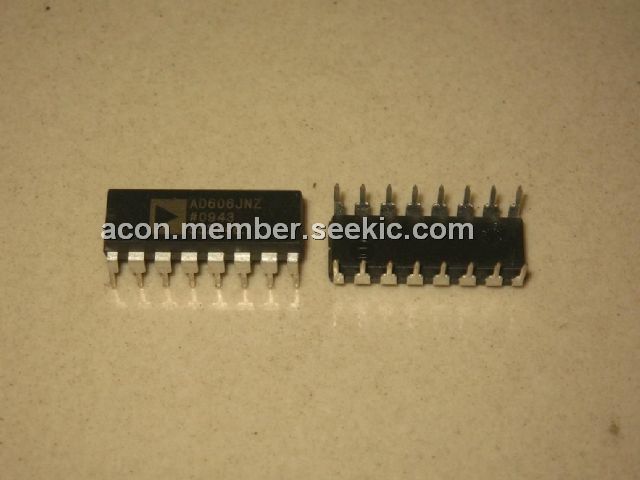

AD606JNZ
AD606JNZ

IC AMP LOG LP 1.2MA 16DIP
Data Sheet
0-1: $29.22
1-10: $27.33
10-100: $23.69
100-250: $22.11
250-500: $21.06
Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
AD600
AD600
Other

Data Sheet
Negotiable
AD600AQ
AD600AQ
Analog Devices Inc
IC OPAMP DUAL ADJ GAIN 16-CDIP
Data Sheet
1-25: $20.94
25-100: $19.45
100-250: $19.07
250-500: $18.70
500-1000: $18.47
1000-5000: $17.95
AD600AR
AD600AR

IC AMP VGA DUAL LN 50MA 16SOIC
Data Sheet
0-10: $22.37
AD600AR-REEL
AD600AR-REEL

IC AMP VGA DUAL LN 50MA 16SOIC
Data Sheet
0-1000: $17.24
AD600AR-REEL7
AD600AR-REEL7

IC AMP VGA DUAL LN 50MA 16SOIC
Data Sheet
0-400: $18.11
AD600ARZ
AD600ARZ

IC AMP VGA DUAL LN 50MA 16SOIC
Data Sheet
0-1: $21.17
1-10: $19.80
10-100: $17.16
100-250: $16.02
250-500: $15.26
