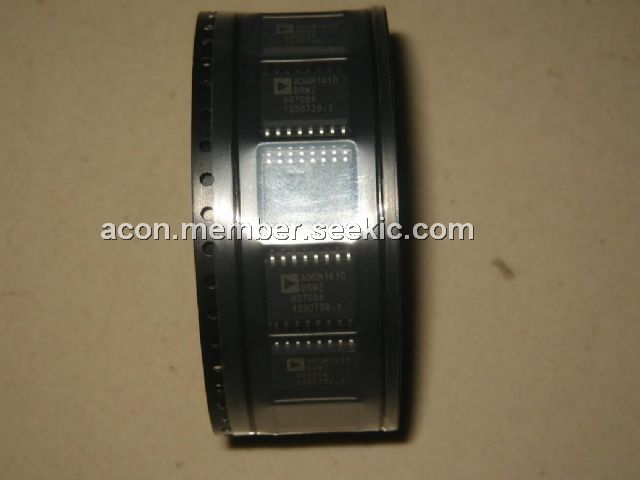

ADUM1410

quad－channel digital isolator, 18 mA, 7.0 V, SOP16

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.10~0.20 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.10~0.20

PartNumber:: ADUM1410

Brand:: Analog Devices - ADI | Pack: SOP | D/C: 11+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Laneya's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-08-22

From Other Seller

Part Number:ADUM1410
US $0.10 - 0.20
A50L-0001-0175

US $100.00 - 100.00 / Piece
(0) Remove
2DI75D-050A

US $16.00 - 30.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

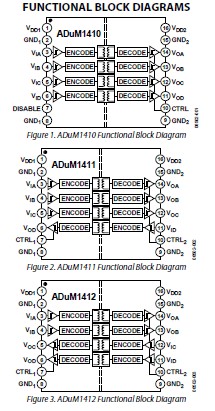

The ADUM1410 is a quad－channel digital isolator based on Analog Devices, Inc. iCoupler technology. Combining high speed CMOS and monolithic air core transformer technologies, the ADUM1410 provide outstanding performance characteristics superior to alternatives such as optocoupler devices. By avoiding the use of LEDs and photodiodes, the ADUM1410 removes the design difficulties commonly associated with opto－couplers. The usual concerns that arise with optocouplers, such as uncertain current transfer ratios, nonlinear transfer functions, and temperature and lifetime effects are eliminated with the simple iCoupler digital interfaces and stable performance charac－teristics. The need for external drivers and other discrete components is eliminated with these iCoupler products.

Parametrics

ADUM1410 absolute maximum ratings: (1) Storage Temperature (TST): －65°C to +150°C; (2) Ambient Operating Temperature (TA): －40°C to +105°C; (3) Supply Voltages1 (VDD1, VDD2): －0.5 V to +7.0 V; (4) Input Voltages1, 2 (VIA, VIB, VIC, VID, VE1, VE2): －0.5 V to VDDI + 0.5 V; (5) Output Voltages1, 2 (VOA, VOB, VOC, VOD): －0.5 V to VDDO + 0.5 V; (6) Average Output Current per Pin3 Side 1 (IO1): －18 mA to +18 mA,Side 2 (IO2): －22 mA to +22 mA; (7) Common－Mode Transients4: －100 kV/μs to +100 kV/μs.

Features

ADUM1410 features: (1)Bidirectional communication; (2)3 V/5 V level translation; (3)High temperature operation: 105°C; (4)Up to 10 Mbps data rate (NRZ); (5)Programmable default output state; (6)High common－mode transient immunity: >25 kV/μs; (7)16－lead, Pb－free, SOIC wide body package.
