Product Summary

The C1206C102K5GAC is a ceramic chip capacitor.

Parametrics

C1206C102K5GAC specifications: (1)Capacitor type: ceramic, MLCC; (2)Capacitance: 10μF; (3)Operating voltage: 16V; (4)Dielectric: X7R; (5)Tolerance: ±10%; (6)Mounting: SMD; (7)Case: 1206; (8)Operating temperature: -55 to 125℃.

Features

C1206C102K5GAC features: (1)C0G (NP0), X7R, X5R, Z5U and Y5V Dielectrics; (2)10, 16, 25, 50, 100 and 200 Volts; (3)Standard End Metalization: Tin-plate over nickel barrier; (4)Available Capacitance Tolerances: ±0.10 pF; ±0.25 pF; ±0.5 pF; ±1%; ±2%; ±5%; ±10%; ±20%; and +80%-20%; (5)Tape and reel packaging per EIA481-1. (See page 92 for specific tape and reel information.) Bulk Cassette packaging (0402, 0603, 0805 only) per IEC60286-6 and EIAJ 7201.; (6)RoHS Compliant.

Diagrams

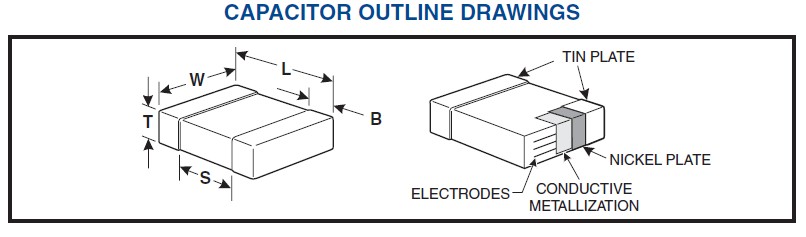

C1206C102K5GAC pin connection

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
C1206C102K5GACTU
C1206C102K5GACTU

Kemet

Multilayer Ceramic Capacitors (MLCC) - SMD/SMT 50volts 1000pF C0G 10%

Data Sheet

0-1: $0.06
1-100: $0.04
100-500: $0.03
500-1000: $0.02
1000-4000: $0.02
C1206C102K5GAC
C1206C102K5GAC

Kemet

Multilayer Ceramic Capacitors (MLCC) - SMD/SMT 1000PF 50.0V

Data Sheet

Negotiable
C1206C102K5GACTM
C1206C102K5GACTM

Kemet

Multilayer Ceramic Capacitors (MLCC) - SMD/SMT 50volts 1000pF C0G 10%

Data Sheet

Negotiable
