Product Summary

The CPC1017N is a miniature 1-Form-A solid state relay in a 4 pin SOP package that employs optically coupled MOSFET technology to provide 1500V of input to output isolation. The super efficient MOSFET switches and photovoltaic die use Clare’s patented OptoMOS architecture. Applications are (1)Passive Infrared Detectors (PIR); (2)Data Signalling; (3)Sensor Circuitry; (4)Multiplexers; (5)Data Acquisition; (6)Electronic Switching; (7)I/O Subsystems; (8)Meters (Watt-Hour, Water, Gas); (9)Medical Equipment—Patient/Equipment Isolation; (10)Aerospace; (11)Industria Controis.

Parametrics

CPC1017N absolute maximum ratings: (1)Input Power Dissipation: 70 mW; (2)Input Control Current: 50 mA; (3)Peak (10ms): 1 A; (4)Reverse Input Voltage: 5 V; (5)Total Power Dissipation: 4001 mW; (6)Isolation Voltage Input to Output(AC Peak test voltage): 2100 Vpeak; (7)Operational Temperature: -40 - +85 °C; (8)Storage Temperature: -40 - +125 °C; (9)Soldering Temperature: +220 °C.

Features

CPC1017N features: (1)Design for use in security systems complying with EN50130-4; (2)Only 1mA of LED curent required to operate; (3)Small 4 Pin SOP Package; (4)TTL/CMOS Compatible input; (5)No Moving Parts; (6)High Reliability; (7)Arc-Free With No Snubbing Circuits; (8)1500VRMS Input/Output Isolation/2100V AC peak; (9)No EMI/RFI Generation; (10)Immune to radiated EM fields; (11)SMD Pick & Place, Wave Solderable; (12)Tape & Reel Version Available.

Diagrams

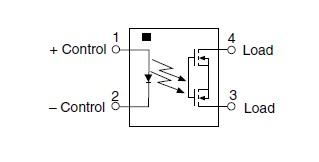

CPC1017N pin connection

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
CPC1017N
CPC1017N
Clare
Solid State Relays SPNO RELAY
Data Sheet
Negotiable
CPC1017NTR
CPC1017NTR
Clare
Solid State Relays 1-Form-A solid state relay - 4-Pin
Data Sheet
Negotiable
