Product Summary

The CY8C22545-24AXI is a PSoC Mixed-Signal Array. The device consists of many Mixed-Signal Array with On-Chip Controller devices. The CY8C22545-24AXI is designed to replace multiple traditional MCU-based system components with one, low cost single-chip programmable device. The CY8C22545-24AXI includes configurable blocks of analog and digital logic, as well as programmable interconnects. This architecture allows the user to create customized peripheral configurations that match the requirements of each individual application. Additionally, a fast CPU, Flash program memory, SRAM data memory, and configurable IO are included in a range of conve-nient pinouts and packages.

Parametrics

CY8C22545-24AXI absolute maximum ratings: (1)Storage Temperature, TSTG: -55 to +100℃; (2)Ambient Temperature with Power Applied, TA: -40 to +85℃; (3)Supply Voltage on Vdd Relative to Vss, Vdd: -0.5 to +6.0 V; (4)DC Input Voltage, VIO: Vss -0.5 to Vdd +0.5 V; (5)DC Voltage Applied to Tri-state, VIOZ: Vss -0.5 to Vdd +0.5 V; (6)Maximum Current into any Port Pin, IMIO: -25 to +50 mA; (7)Electro Static Discharge Voltage, ESD: 2000V; (8)Latch-up Current, LU: 200 mA.

Features

CY8C22545-24AXI features: (1)M8C Processor Speeds to 24 MHz; (2)8x8 Multiply, 32-Bit Accumulate; (3)Low Power at High Speed; (4)2.4 to 5.25 V Operating Voltage; (5)Operating Voltages Down to 1.0V Using On-Chip Switch Mode Pump (SMP); (6)Industrial Temperature Range: -40℃ to +85℃; (7)6 Rail-to-Rail Analog PSoC Blocks Provide: Up to 14-Bit ADCs; Up to 9-Bit DACs; Programmable Gain Amplifiers; Programmable Filters and Comparators; (8)4 Digital PSoC Blocks Provide: 8- to 32-Bit Timers, Counters, and PWMs; CRC and PRS Modules; Full-Duplex UART; Multiple SPI Masters or Slaves; Connectable to all GPIO Pins; (9)Complex Peripherals by Combining Blocks.

Diagrams

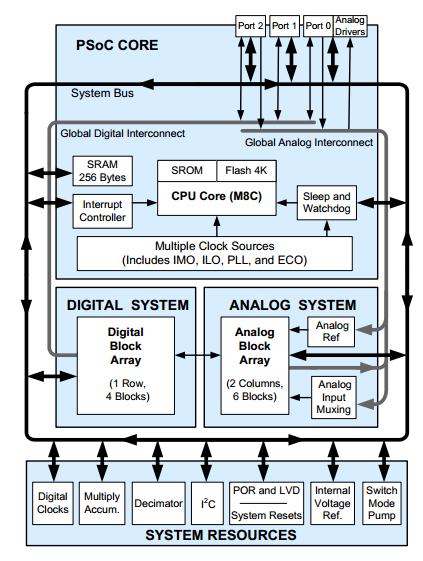

CY8C22545-24AXI block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity

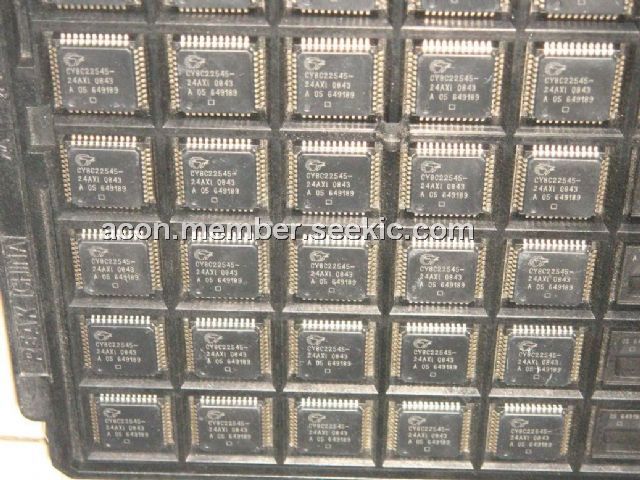

CY8C22545-24AXI
CY8C22545-24AXI

Cypress Semiconductor

Programmable Systems-on-a-Chip (PSoC) PSoC MCU 16K, 1024 RAM

Data Sheet

0-325: $2.27
325-500: $2.20
500-1000: $2.05
1000-2000: $1.97
CY8C22545-24AXIT
CY8C22545-24AXIT

Cypress Semiconductor

Programmable Systems-on-a-Chip (PSoC) 3.0V-5.25V 16K FLASH 1K RAM I2C SPI UART

Data Sheet

0-1115: $2.08
1115-1500: $2.08
1500-2000: $2.00
