Product Summary

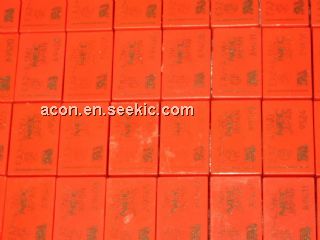

The EA2 is a reduced package size and power consumption to other NEC Conventional relays. Furthermore, it complies with 1500 V surge-voltage requirement of FCC part 68 by the unique structure and the efficient magnetic circuit. Applications is electronic switching systems, PBX, key telephone systems, automatic test equipment and other electronic equipment.
Parametrics
EA2-4.5NU absolute maximum ratings: (1)Maximum switching power: 30 W; (2)Maximum switching voltage: 220 Vdc; (3)Maximum switching current: 1 A; (4)Maximum carrying current: 2 A; (5)Minimum contact ratings: 10 mVdc.
Features
EA2-4.5NU features: (1)Low power consumption; (2)Compact and light weight; (3)2 form c contact arrangement; (4)Low magnetic arrangement; (5)Breakdown voltage : 1000 Vac (surge voltage 1500 V), FCC Part 68 compliant; (6)Tube packaging; (7)UL recognized (E73266), CAS certified (LR46266).

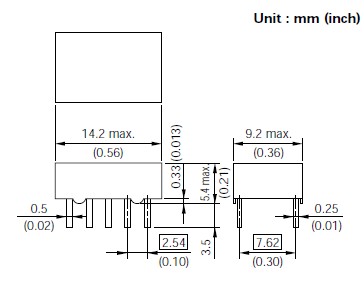

Diagrams
