Product Summary

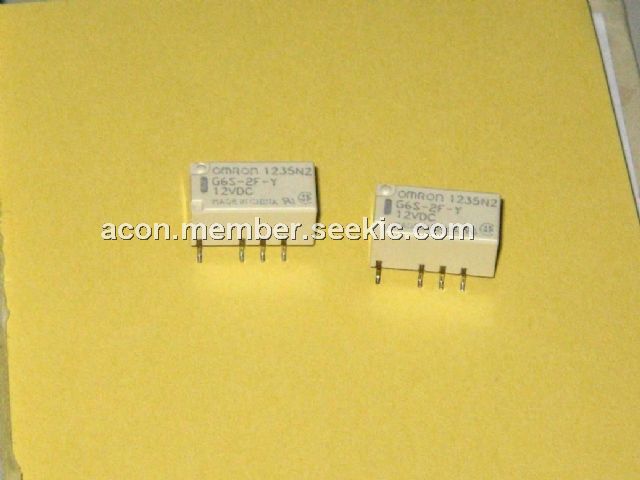

The G6S-2F-Y is a Suface Mount DPDT Relay.
Parametrics
G6S-2F-Y absolute maximum ratings: (1)Rated load: 0.5 A at 125 VAC; 2 A at 30 VDC; (2)Contact material: Ag (Au clad); (3)Max. carry current: 2 A; (4)Max. operating voltage: 250 VAC, 220 VDC; (5)Max. operating current: 2 A; (6)Max. switching capacity: 62.5 VA, 60 W; (7)Min. permissible load: 10 μA, 10 mVDC.
Features
G6S-2F-Y features: (1)High dielectric withstand voltage of 2,000 VAC between coil and contacts (standard type); 1,500 VAC between contacts of different polarity; (2)Meets FCC Part 68 and Telcordia 2.5 kV surge withstand; (3)European version certified for EN60950/EN41003 Supplementary Insulation at 250 V at Pollution Degree 2; (4)Low power consumption of 140 mW (Non-latching); (5)Available in through-hole and SMT terminals; (6)Tape and reel or tube packaging; (7)RoHS Compliant.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 G6S-2F-Y DC12 |
Omron Electronics |
Low Signal Relays - PCB Gullwing NoLatch Eur DPDT 12VDC 200mW |
Data Sheet |
|
|
||||||||||||||||||
 |
G6S-2F-Y DC12 BY OMR |
|
RELAY TELECOM DPDT 2A 12V |
Data Sheet |
|
|
||||||||||||||||||
|
G6S-2F-Y DC24 |
Omron Electronics |
Low Signal Relays - PCB Gullwing NoLatch Eur DPDT 24VDC 230mW |
Data Sheet |
|
|
||||||||||||||||||
|
G6S-2F-Y DC24 BY OMR |
|
RELAY TELECOM DPDT 2A 24V |
Data Sheet |
|
|
||||||||||||||||||
|
G6S-2F-Y DC3 |
Omron Electronics |
Low Signal Relays - PCB Gullwing NoLatch Eur DPDT 3VDC 200mW |
Data Sheet |
|
|
||||||||||||||||||
|
G6S-2F-Y DC3 BY OMR |
|
RELAY TELECOM DPDT 2A 3V |
Data Sheet |
|
|
||||||||||||||||||
|
G6S-2F-Y DC4.5 |
Omron Electronics |
Low Signal Relays - PCB Gullwing NoLatch Eur DPDT 4.5DC 200mW |
Data Sheet |
|
|
||||||||||||||||||
|
G6S-2F-Y DC4.5 BY OMR |
|
RELAY TELECOM DPDT 2A 4.5V |
Data Sheet |
|
|
||||||||||||||||||
