Product Summary
The GSIB2580 is a Single-Phase Single In-Line Bridge Rectifier.
Parametrics
GSIB2580 absolute maximum ratings: (1)Maximum repetitive peak reverse voltage: 800V; (2)Maximum RMS voltage: 560V; (3)Maximum DC blocking voltage: 800V; (4)Rating for fusing (t < 8.3ms): 500A2sec; (5)Maximum thermal resistance per leg: 1.0℃/W; (6)Operating junction and storage temperature range: -55 to +150℃.
Features
GSIB2580 features: (1)Plastic package has Underwriters Laboratory; (2)Flammability Classification 94V-0; (3)This series is UL listed under the Recognized Component Index, file number E54214.; (4)High case dielectric strength of 2500 VRMS; (5)Ideal for printed circuit boards; (6)Glass passivated chip junction; (7)High surge current capability.

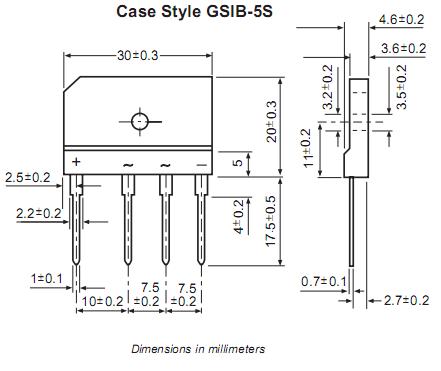

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 GSIB2580 |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
|
GSIB2580-E3/45 |
Vishay Semiconductors |
Bridge Rectifiers 800 Volt 25 Amp 350 Amp IFSM |
Data Sheet |
|
|
||||||||||||
