Product Summary

The ICS525RI-11T is an OSCaR User Configurable Clock. It is a high quality, high accuracy, high frequency clock output from an inexpensive crystal or clock input. The name OSCaR stands for OSCillator Replacement, as the ICS525RI-11T is designed to replace crystal oscillators in almost any electronic system. The user can easily configure the device to produce nearly any output frequency from any input frequency by grounding or floating the select pins.

Parametrics

ICS525RI-11T absolute maximum ratings: (1)Supply Voltage, VDD: 7 V; (2)Inputs: -0.5 VDD+0.5 V; (3)Clock OutputD: -0.5 to VDD+0.5 V; (4)Ambient Operating Temperature: 0 to 70℃; (5)Industrial -40 to 85℃; (6)Soldering Temperature Max of 10 seconds: 260℃; (7)Storage Temperature: -65 to 150℃.

Features

ICS525RI-11T features: (1)Packaged as 28 pin SSOP (150 mil body; (2) User determines the output frequency by setting all internal dividers; (3)Eliminates need for custom oscillators; (4)No software needed; (5)Pull-ups on all select inputs; (6)Input crystal frequency of 5 - 27 MHz; (7) Input clock frequency of 2 - 50 MHz; (8)Very low jitter ; (9)Duty cycle of 45/55 up to 200 MHz; (10)Operating voltages of 3.0 to 5.5V; (11)Ideal for oscillator replacement; (12)Industrial temperature versions available; (13)For Zero Delay, refer to the ICS527.

Diagrams

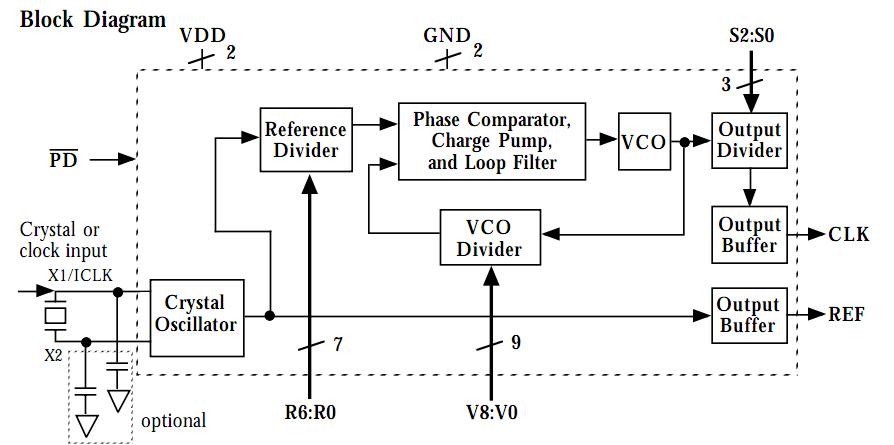

ICS525RI-11T block diagram
