LM2660M

Switched Capacitor Voltage Converter, SOP, 6.5Ω output resistance, 88% conversion efficiency, 120 mA

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.01~0.02 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.01~0.02

PartNumber:: LM2660M

Brand:: National Semiconductor - NS | Pack: SOP | D/C: 11+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Laneya's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-09-26

From Other Seller

Part Number:LM2660M
US $0.01 - 0.02
AT45DB161D-SU

US $1.50 - 3.50 / Piece
(0) Remove
AT25256AW-10SU-2.7

US $0.65 - 1.50 / Piece
(0) Remove
Quantity:

piece

Product Summary

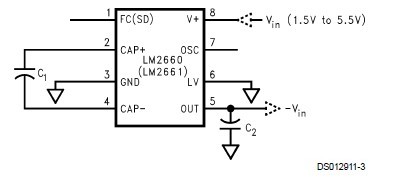

The LM2660M CMOS charge-pump voltage converter inverts a positive voltage in the range of 1.5V to 5.5V to the corresponding negative voltage. The LM2660M uses two low cost capacitors to provide 100 mA of output current without the cost, size, and EMI related to inductor based converters. With an operating current of only 120 μA and operating efficiency greater than 90% at most loads, the LM2660M provides ideal performance for battery powered systems. The LM2660MM may also be used as a positive voltage doubler. The oscillator frequency can be lowered by adding an external capacitor to the OSC pin. Also, the OSC pin may be used to drive the LM2660MM with an external clock. For LM2660M, a frequency control (FC) pin selects the oscillator frequency of 10 kHz or 80 kHz. For LM2661, an external shutdown (SD) pin replaces the FC pin. The SD pin can be used to disable the device and reduce the quiescent current to 0.5 μA. The oscillator frequency for the LM2661 is 80 kHz.

Parametrics

LM2660M absolute maximum ratings: (1)Supply Voltage (V+ to GND, or GND to OUT): 6V; (2)LV: (OUT -0.3V) to (GND + 3V); (3)FC, OSC: The least negative of (OUT -0.3V) or (V+ -6V) to (V+ + 0.3V); (4)V+ and OUT Continuous Output Current: 120 mA; (5)Output Short-Circuit Duration to GND: 1 sec.; (6)Power Dissipation (TA = 25℃): 735 mW; (7)TJ Max: 150℃; (8)qJA: 170℃/W; (9)Operating Junction Temperature: -40℃ to +85℃; (10)Storage Temperature Range: -65℃ to +150℃; (11)Lead Temperature: 300℃; (12)ESD Rating: 2 kV.

Features

LM2660M features: (1)Inverts or doubles input supply voltage; (2)Narrow SO-8 and Mini SO-8 Package; (3)6.5W typical output resistance; (4)88% typical conversioefficiency at 100 mA; (5)(LM2660) selectable oscillator frequency: 10 kHz/80 kHz; (6)(LM2661) low current shutdowmode.
