Product Summary
The QS5U12 is a small switching. Application is Load switch, DC / DC conversion.
Parametrics
QS5U12 absolute maximum ratings: (1)Drain-source voltage: 30 V; (2)Gate-source voltage: 12 V; (3)Drain current Continuous: ±2.0 A; (4)Drain current Pulsed: ±8.0 A; (5)Source current Continuous: 0.8 A; (6)Source current Pulsed: 3.2 A; (7)Channel temperature: 150 ℃.
Features
QS5U12 features: (1)The qs5u12 combines nch mosfet with a schottky barrier diode in a single tsmt5 package; (2)Nch mosfet have a low on-state resistance with a fast switching; (3)Nch mosfet is reacted a low voltage drive (2.5v); (4)The independently connected schottky barrier diode have a low forward voltage.

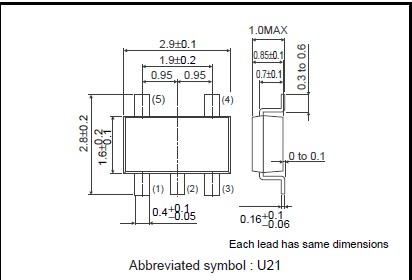

Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|
QS5U12 |
Other |
Data Sheet |
Negotiable |
|
||||||||
QS5U12TR |
ROHM Semiconductor |
MOSFET N-CH 30V 2A TSMT5 |
Data Sheet |
|
|
