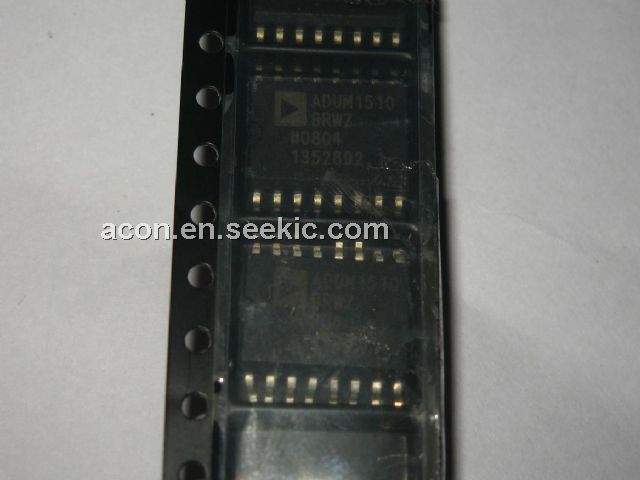

Product Summary

The adum1510 is a unidirectional, 5-channel isolator based on the Analog Devices, Inc., iCoupler technology. Combining high speed CMOS and monolithic air core transformer technology, the adum1510 provides outstanding performance characteristics superior to alternatives such as optocoupler devices. Applications are General-purpose, unidirectional, multichannel isolation.

Parametrics

adum1510 absolute maximum ratings: (1)Storage Temperature (TST)Range: -65°C to +150°C; (2)Ambient Operating Temperature (TA)Range -40°C to +105°C; (3)Supply Voltages1 (VDD1, VDD2)-0.5 V to +7.0 V; (4)Input Voltages1 (VIA, VIB, VIC, VID, VIE)-0.5 V to VDDI + 0.5 V; (5)Output Voltages1 (VOA, VOB, VOC, VOD, VOE)-0.5 V to VDDO + 0.5 V; (6)Average Output Current per Pin2: Side 1 (IO1)-18 mA to +18 mA, Side 2 (IO2)-22 mA to +22 mA.

Features

adum1510 features: (1)RoHS compliant, 16-lead, wide body SOIC package; (2)Low power operation: 5 V; (3)1.3 mA per channel maximum @ 0 Mbps to 2 Mbps; (4)3.3 mA per channel maximum @ 10 Mbps; (5)High temperature operation: 105°C; (6)Up to 10 Mbps data rate (NRZ); (7)Low default output state; (8)Safety and regulatory approvals UL recognition: 2500 V rms for 1 minute per UL 1577.

Diagrams

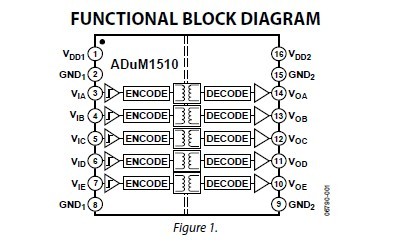

adum1510 pin connection
