Product Summary

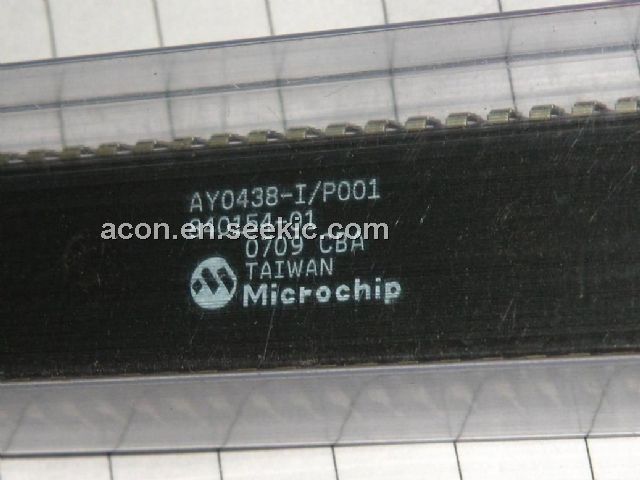

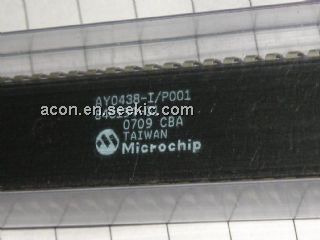

The AY0438-I/P001 is a CMOS integrated device that drives a liquid crystal display, usually under microprocessor control. The part acts as a smart peripheral that drives up to 32 LCD segments. The AY0438-I/P001 needs only three control lines due to its serial input construction. The AY0438-I/P001 latches the data to be displayed and relieves the microprocessor from the task of generating the required waveforms. Applications are (1)Industrial displays; (2)Consumer product displays; (3)Telecom product displays; (4)Automotive dashboard displays.
Parametrics
AY0438-I/P001 absolute maximum ratings: (1)VDD: -0.3V to +12V; (2)Inputs (CLK, Data In, Load): VCC to VDD +0.3V; (3)LCD Input: -0.3V to VDD +0.3V; (4)Power Dissipation: 250 mW; (5)Storage Temperature: -65°C to +125°C; (6)Operating Temperature Industrial: -40°C to +85°C.
Features
AY0438-I/P001 features: (1)Drives up to 32 LCD segments of arbitrary configuration; (2)CMOS process for: wide supply voltage range, low- power operation, high-noise immunity, wide temperature range; (3)CMOS and TTL-compatible inputs; (4)Electrostatic discharge protection on all pins; (5)Cascadable; (6)On-chip oscillator; (7)Requires only three control lines.

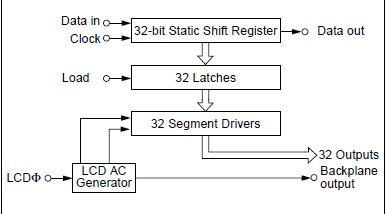

Diagrams
