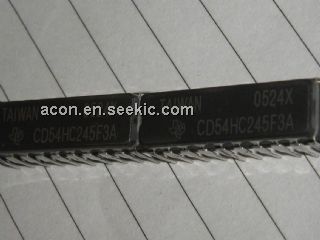

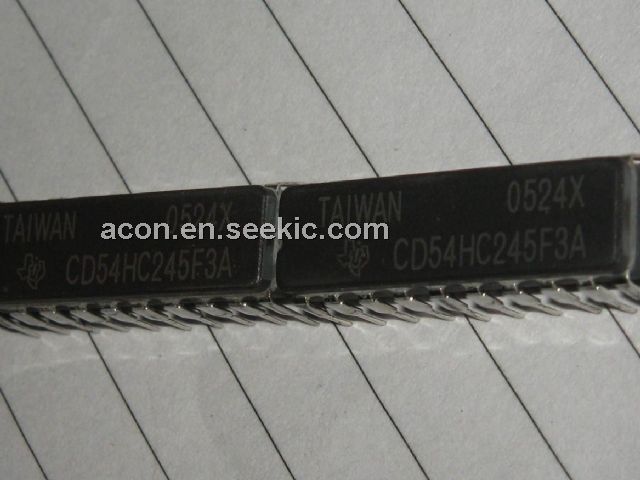

Product Summary
The CD54HC245F3A is a high-speed octal three-state bidirectional transceiver, which is intended for two-way asynchronous communication between data buses. It has high drive current outputs which enable high-speed operation while driving large bus capacitances. The CD54HC245F3A provides the low power consumption of standard CMOS circuits with speeds and drive capabilities comparable to that of LSTTL circuits.
Parametrics
CD54HC245F3A absolute maximum ratings: (1)DC Supply Voltage, VCC: -0.5V to 7V; (2)DC Input Diode Current, IIK For VI < -0.5V or VI > VCC + 0.5V: ±20mA; (3)DC Output Diode Current, IOK For VO < -0.5V or VO > VCC + 0.5V: ±20mA; (4)DC Drain Current, per Output, IO For -0.5V < VO < VCC + 0.5V: ±35mA; (5)DC Output Source or Sink Current per Output Pin, IO For VO > -0.5V or VO < VCC + 0.5V: ±25mA; (6)DC VCC or Ground Current, ICC: ±50mA.
Features
CD54HC245F3A features: (1)Buffered Inputs; (2)Three-State Outputs; (3)Bus Line Driving Capability; (4)Typical Propagation Delay (A to B, B to A) 9ns at VCC = 5V, CL = 15pF, TA = 25℃; (5)Wide Operating Temperature Range: -55℃ to 125℃; (6)Balanced Propagation Delay and Transition Times; (7)Significant Power Reduction Compared to LSTTL Logic ICs.

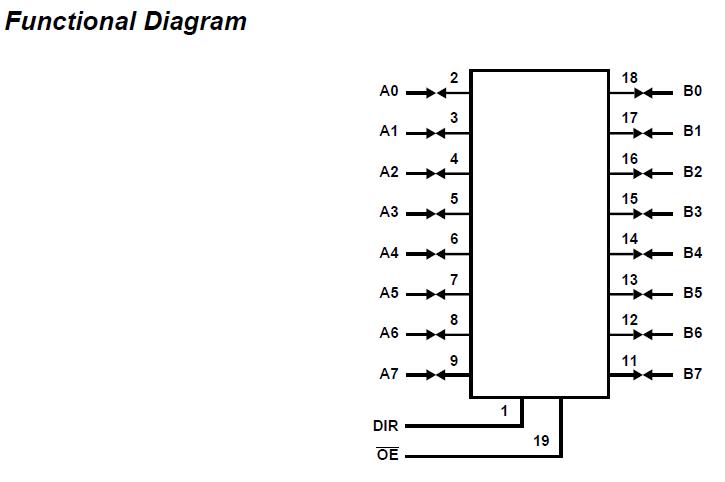

Diagrams
