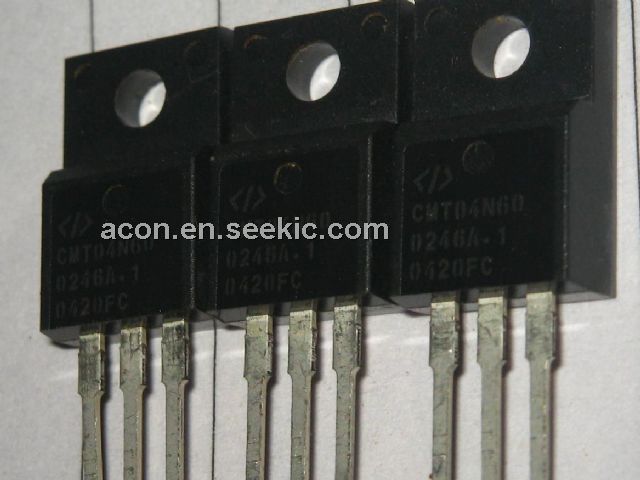

CMT04N60

CMT04N60, power MOSFET, 4.0 A, 20 V, 96 W, TO220F

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.50~0.50 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 10 :	0.50 / Piece

PartNumber:: CMT04N60

Brand:: champion-micro corp. - CHAMPION | Pack: | D/C:

Availability:: Supply Ability: 5000/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. Laneya's store

(China (Mainland))

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-05-16

From Other Seller

Part Number:CMT04N60
US $0.50 - 0.50
Quantity:

piece

Product Summary

The CMT04N60 is a power MOSFET. This advanced high voltage MOSFET is designed to withstand high energy in the avalanche mode and switch efficiently. The CMT04N60 also offers a drain-to-source diode with fast recovery time. Designed for high voltage, high speed switching applications such as power supplies, converters, power motor controls and bridge circuits.

Parametrics

CMT04N60 absolute maximum ratings: (1)Drain to Current － Continuous: 4.0 A; (2)Gate-to-Source Voltage － Continue: ±20 V; (3)Total Power Dissipation TO-220: 96 W; (4)Operating and Storage Temperature Range: -55 to 150 ℃; (5)Single Pulse Drain-to-Source Avalanche Energy － TJ = 25℃ (VDD = 100V, VGS = 10V, IL = 4A, L = 10mH, RG = 25Ω): 80 mJ; (6)Maximum Lead Temperature for Soldering Purposes, 1/8 from case for 10 seconds: 260 ℃.

Features

CMT04N60 features: (1)Higher Current Rating; (2)Lower Rds(on); (3)Lower Capacitances; (4)Lower Total Gate Charge; (5)Tighter VSD Specifications; (6)Avalanche Energy Specified.
