Product Summary

The ICL7665 is a microprocessor voltage monitor. The device warns microprocessors (mPs) of overvoltage and undervoltage conditions. It draws a typical operating current of only 3μA. The trip points and hysteresis of the two voltage detectors are individually programmed via external resistors to any voltage greater than 1.3V. The ICL7665 will operate from any supply voltage in the 1.6V to 16V range, while monitoring voltages from 1.3V to several hundred volts. The Maxim ICL7665 is an improved version with a 2%-accurate VSET1 threshold and guaranteed performance over temperature. The 3μA quiescent current of the ICL7665 makes it ideal for voltage monitoring in battery-powered systems. In both battery- and line-powered systems, the unique combination of a reference, two comparators, and hysteresis outputs reduces the size and component count of many circuits.

Parametrics

ICL7665 absolute maximum ratings: (1)Output Voltage Nominal: 18 V; (2)P(D) Max.: 200 m ; (3)Nom. Supp: 5.0 V; (4)Minimum Operating Temp: 0 ℃; (5)Maximum Operating Temp: 70 ℃.

Features

ICL7665 features: (1)μP Over/Undervoltage Warning; (2)Improved Second Source; (3)Dual Comparator with Precision Internal Reference; (4)3μA Operating Current; (5)2% Threshold Accuracy (ICL7665A); (6)1.6V to 16V Supply Voltage Range; (7)On-Board Hysteresis Outputs; (8)Externally Programmable Trip Points; (9)Monolithic, Low-Power CMOS Design.

Diagrams

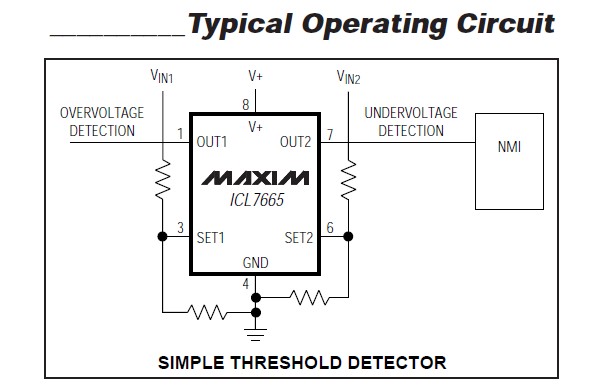

ICL7665 pin connection

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity

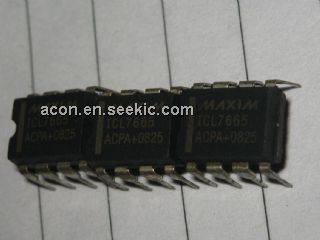

ICL7665
ICL7665

Other


Data Sheet

Negotiable
ICL7665ACSA+
ICL7665ACSA+

Maxim Integrated Products

Voltage Detectors / Monitors uP V Monitor w/Dual Over/Under V Detect

Data Sheet

0-1: $3.73
1-25: $2.51
25-50: $1.82
50-100: $1.79
ICL7665ACSA+T
ICL7665ACSA+T

Maxim Integrated Products

Voltage Detectors / Monitors uP V Monitor w/Dual Over/Under V Detect

Data Sheet

0-2080: $1.56
2080-2500: $1.56
ICL7665AEPA+
ICL7665AEPA+

Maxim Integrated Products

Voltage Detectors / Monitors uP V Monitor w/Dual Over/Under V Detect

Data Sheet

0-1: $5.38
1-25: $3.59
25-50: $2.60
50-100: $2.57
ICL7665AESA+
ICL7665AESA+

Maxim Integrated Products

Voltage Detectors / Monitors uP V Monitor w/Dual Over/Under V Detect

Data Sheet

0-1: $4.14
1-25: $2.78
25-50: $2.02
50-100: $1.99
ICL7665SACBAZ
ICL7665SACBAZ

Intersil

Voltage Detectors / Monitors CMOS OVER/UNDER V DETECTOR COM

Data Sheet

0-760: $1.03
ICL7665SACBAZ-T
ICL7665SACBAZ-T

Intersil

Voltage Detectors / Monitors CMOS OVER/UNDER V DETECTOR COM

Data Sheet

0-1240: $1.67
1240-2500: $1.03
ICL7665SACPAZ
ICL7665SACPAZ

Intersil

Voltage Detectors / Monitors W/ANNEAL CMOS OVER/ UNDER V DETECTOR

Data Sheet

0-495: $1.52
495-1000: $0.94
