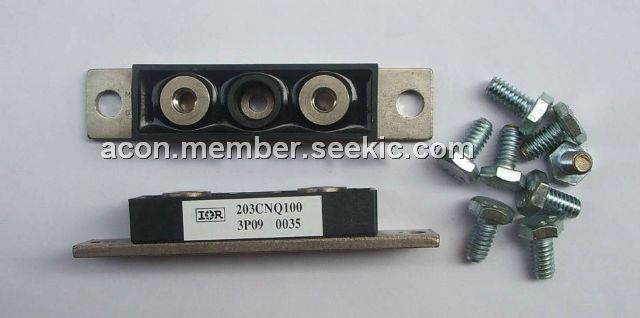

The 203CNQ100 is a schottky rectifier. The 203CNQ100 has been optimized for low reverse leakage at high temperature. The proprietary barrier technology allows for reliable operation up to 175 °C junction temperature. Typical applications of the 203CNQ100 are in high current switching power supplies, plating power supplies, UPS systems, converters, free-wheeling diodes, welding, and reverse battery protection.
Parametrics
203CNQ100 absolute maximum ratings: (1)IF(AV) Rectangular waveform : 200 A; (2)VRRM range 80 and 100 V; (3)IFSM @ tp = 5 μs sine 16,000 A; (4)VF @ 100Apk, TJ=125°C (per leg): 0.70 V; (5)TJ range - 55 to 175 °C.
Features
203CNQ100 features: (1)175 °C TJ operation; (2)Center tap module; (3)High purity, high temperature epoxy encapsulation for enhanced mechanical strength and moisture resistance; (4)Low forward voltage drop; (5)High frequency operation; (6)Guard ring for enhanced ruggedness and long term reliability.
Diagrams
