Product Summary

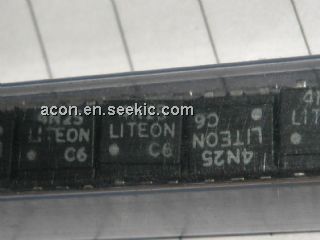

The 4N25 is a general purpose 6-pin phototransistor optocoupler. It consists of a gallium arsenide infrared emitting diode driving a silicon phototransistor in a 6-pin dual in-line package. The applications of the 4N25 include Power supply regulators, Digital logic inputs, Microprocessor inputs.

Parametrics

4N25 absolute maximum ratings: (1)Storage Temperature: -55 to +150 ℃; (2)Operating Temperature: -55 to +100 ℃; (3)Wave solder temperature: 260 ℃ for 10 sec; (4)Total Device Power Dissipation @ TA = 25℃: 250 ℃; (5)Derate above 25℃: 3.3 (non-M), 2.94 (-M) mW; (6)DC/Average Forward Input Current: 100 (non-M), 60 (-M) mA; (7)Reverse Input Voltage: 6 V; (8)Forward Current - Peak (300μs, 2% Duty Cycle): 3 A; (9)LED Power Dissipation @ TA = 25℃: 150 (non-M), 120 (-M) mW; (10)Derate above 25℃: 2.0 (non-M), 1.41 (-M) mW/℃.

Features

4N25 features: (1)Also available in white package by specifying -M suffix, eg. 4N25-M; (2)UL recognized (File # E90700); (3)VDE recognized (File # 94766): Add option V for white package (e.g., 4N25V-M), Add option 300 for black package (e.g., 4N25.300).

Diagrams

4N25 pin connection

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
4N25
4N25

Vishay Semiconductors

Transistor Output Optocouplers Phototransistor Out

Data Sheet

0-1: $0.16
1-10: $0.15
10-100: $0.14
100-250: $0.13
4N25(SHORT)
4N25(SHORT)


PHOTOCOUPLER TRANS OUT 6-DIP

Data Sheet

Negotiable
4N25(SHORT,F)
4N25(SHORT,F)

Toshiba

Transistor Output Optocouplers TR JEDEC EQUIV

Data Sheet

0-1: $0.18
1-10: $0.14
10-50: $0.14
50-100: $0.13
4N25_Q
4N25_Q

Fairchild Semiconductor

Transistor Output Optocouplers Phototransistor Output Optocoupler

Data Sheet

0-1: $0.10
1-100: $0.09
100-500: $0.09
500-1000: $0.09
4N25-000E
4N25-000E

Avago Technologies

Transistor Output Optocouplers 2500 Vrms 80mA

Data Sheet

0-1: $0.19
1-25: $0.12
25-100: $0.11
100-250: $0.10
4N25-060E
4N25-060E

Avago Technologies

Transistor Output Optocouplers 2500 Vrms 80mA

Data Sheet

0-1: $0.20
1-25: $0.14
25-100: $0.12
100-250: $0.11
4N25300
4N25300

Fairchild Semiconductor

Transistor Output Optocouplers Optocoupler Phototransistor

Data Sheet

Negotiable
4N25-300E
4N25-300E

Avago Technologies

Transistor Output Optocouplers 2500 Vrms 80mA

Data Sheet

0-3400: $0.09
3400-5000: $0.08
5000-10000: $0.08
