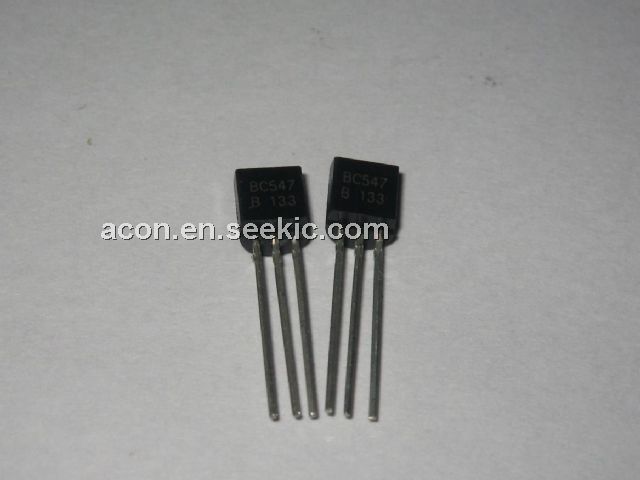

Product Summary

The BC547 is an NPN general purpose transistor. It is used in General purpose switching and amplification.

Parametrics

BC547 absolute maximum ratings: (1)VCBO collector-base voltage: max=50 V; (2)VCEO collector-emitter voltage: max=45 V; (3)VEBO emitter-base voltage: max=6 V; (4)IC collector current (DC): max=100 mA; (5)ICM peak collector current: max=200 mA; (6)IBM peak base current: max=200 mA; (7)Ptot total power dissipation: max=500 mW; (8)Tstg storage temperature: -65 to +150 ℃; (9)Tj junction temperature: max=150 ℃; (10)Tamb ambient temperature: -65 to +150 ℃.

Features

BC547 features: (1)Low current (max. 100 mA); (2)Low voltage (max. 65 V).

Diagrams

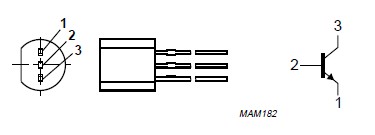

BC547 pin connection

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity

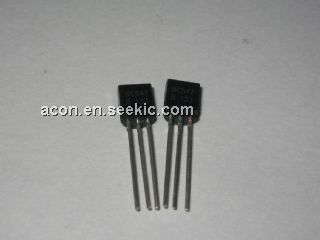

BC547
BC547

Fairchild Semiconductor

Transistors Bipolar (BJT) NPN 45V 100mA

Data Sheet

0-1: $0.13
1-25: $0.11
25-100: $0.07
100-250: $0.05
