Product Summary

The FSBB15CH60F is an advanced smart power module. It is designed to provide very compact and high performance ac motor drives mainly targeting lowpower inverter-driven application like air conditioner and washing machine.

Parametrics

FSBB15CH60F absolute maximum ratings: (1)VPN, Supply Voltage: 450 V when applied between P- NU, NV, NW ; (2)VPN(Surge), Supply Voltage (Surge): 500 V when applied between P- NU, NV, NW; (3)VCES, Collector-emitter Voltage: 600 V; (4)± IC, Each IGBT Collector Current: 15 A when TC = 25℃; (5)± ICP, Each IGBT Collector Current (Peak): 30 A when TC = 25℃, Under 1ms Pulse Width; (6)PC, Collector Dissipation: 50 W when TC = 25℃ per One Chip; (7)TJ, Operating Junction Temperature: -20 to 125 ℃.

Features

FSBB15CH60F features: (1)UL Certified No.E209204 (SPM27-CA package); (2)Very low thermal resistance due to using DBC; (3)600V-15A 3-phase IGBT inverter bridge including control ICs for gate driving and protection; (4)Divided negative dc-link terminals for inverter current sensing applications; (5)Single-grounded power supply due to built-in HVIC; (6)Isolation rating of 2500Vrms/min.

Diagrams

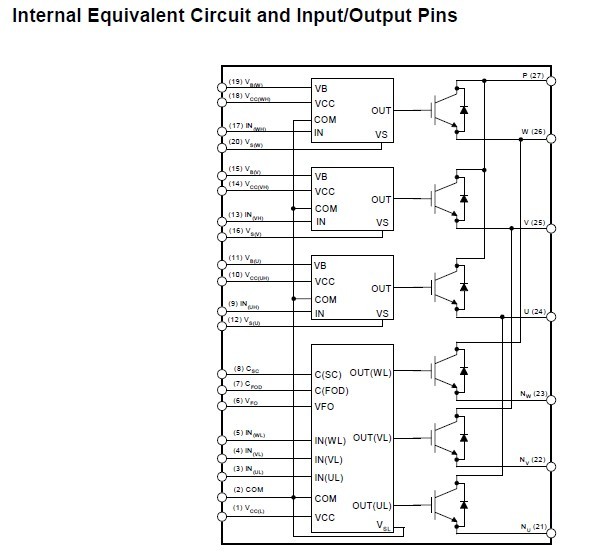

FSBB15CH60F Internal Equivalent Circuit

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
FSBB15CH60F
FSBB15CH60F

Fairchild Semiconductor

IGBT Transistors 600V SPM

Data Sheet

0-36: $13.40
36-100: $12.46
100-250: $11.42
250-500: $10.87
Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
FSBB15CH60
FSBB15CH60

Fairchild Semiconductor

IGBT Transistors HIGH_POWER

Data Sheet

0-1: $15.71
1-25: $13.36
25-100: $12.41
100-250: $11.38
FSBB15CH60B
FSBB15CH60B

Fairchild Semiconductor

IGBT Transistors 600V -15A 3-phase

Data Sheet

Negotiable
FSBB15CH60BT
FSBB15CH60BT

Fairchild Semiconductor

IGBT Transistors 600V -15A 3-phase

Data Sheet

Negotiable
FSBB15CH60C
FSBB15CH60C

Fairchild Semiconductor

IGBT Transistors 600V -15A 3 Phase

Data Sheet

0-1: $12.96
1-25: $11.98
25-100: $10.24
100-250: $9.39
FSBB15CH60F
FSBB15CH60F

Fairchild Semiconductor

IGBT Transistors 600V SPM

Data Sheet

0-36: $13.40
36-100: $12.46
100-250: $11.42
250-500: $10.87
FSBB20CH60
FSBB20CH60

Fairchild Semiconductor

IGBT Modules HIGH_POWER

Data Sheet

0-36: $13.40
36-100: $12.44
100-250: $11.42
250-500: $10.87
