Product Summary
The CD22M3494SQ is a 16 × 8 × 1 BiMOS-E Crosspoint Switch. Because of the switch structure, input signals may swing through the total supply voltage range, VDD to VEE. The CD22M3494SQ may be addressed via the ADDRESS input to the 7 to 128 line decoder. The state of the addressed switch is established by the signal to the DATA input. The applications of the CD22M3494SQ include: PBX Systems, Instrumentation, Analog and Digital Multiplexers, Video Switching Networks.
Parametrics
CD22M3494SQ absolute maximum ratings: (1)DC Supply Voltage (VDD) Voltages Referenced to VEE: -0.5 to 16V; (2)DC Supply Voltage (VDD) Voltages Referenced to VSS: -0.5, 16V; (3)DC Input Diode Current, IIN For VI, Digital < VSS -0.5V or VI, Analog < VEE -0.5V or VI > VDD 0.5V: ±20mA; (4)DC Output Diode Current, IOK For VO, Digital < VSS -0.5V or VO, Analog < VEE -0.5V or VO > VDD 0.5V: ±20mA; (5)DC Transmission Gate Current: ±25mA; (6)Power Dissipation Per Package (Po)For TA = -40℃ to 85℃ (PDIP): 500mW; For TA = 60℃ to 85℃ Derate Linearly: 12mW/℃ to 200mW; For TA = -40℃ to 85℃ (PLCC): 600mW.
Features
CD22M3494SQ features: (1)128 Analog Switches; (2)Low rON; (3)Guaranteed rON Matching; (4)Analog Signal Input Voltage Equal to the Supply Voltage; (5)Wide Operating Voltage: 4V to 15V; (6)Parallel Input Addressing; (7)High Latch Up Current: 50mA (Min); (8)Very Low Crosstalk; (9)Pin and Functionally Compatible with the Following Types: SGS M3494 and Mitel MT8816; (10)Pb-Free Plus Anneal Available (RoHS Compliant).

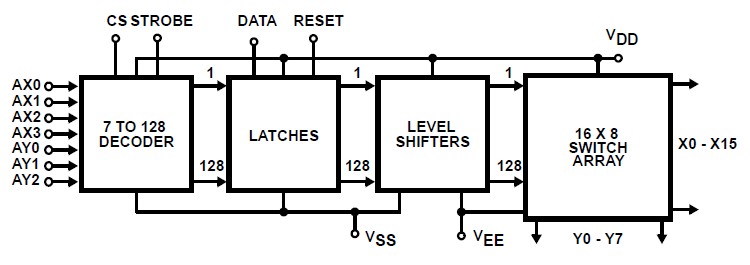

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |

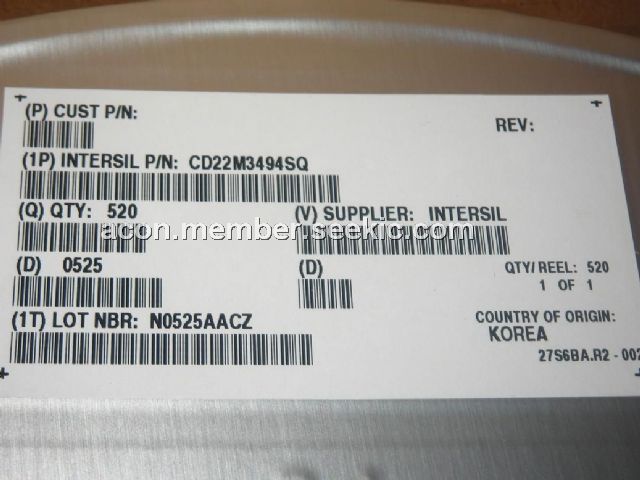

 CD22M3494SQ |
Intersil |
IC SWITCH XPOINT 16X8 44-PLCC |
Data Sheet |
Negotiable |
|
||||
|
CD22M3494SQZ |
Intersil |
IC SWITCH XPOINT 16X8 44-PLCC |
Data Sheet |
Negotiable |
|
||||
