Product Summary

The LA205-S is a Current Transducer. The applications of it are AC variable speed drives and servo motor drives, Static converters for DC motor drives, Battery supplied applications, Uninterruptible Power Supplies(UPS), Switched Mode Power Supplies(SMPS), Power supplies for welding applications.

Parametrics

LA205-S absolute maximum ratings: (1)Primary nominal r.m.s. current: 200A; (2)Primary current, measuring range: 0 to ±300A; (3)Measuring overload: 600A; (4)Secondary nominal r.m.s. current: 100mA; (5)Conversion ratio: 1 : 2000; (6)Supply voltage (± 5 %): ± 12 to 15V.

Features

LA205-S features: (1)Closed loop (compensated) current transducer using the Hall effect; (2)Insulated plastic case recognized according to UL 94-V0; (3)Patent pending.

Diagrams

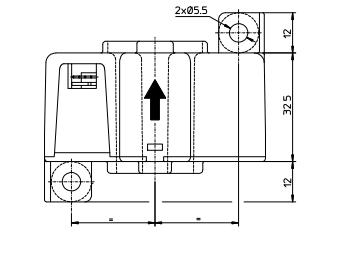

LA205-S package dimensions
