Product Summary

The LF356N is a monolithic JFET input operational amplifier to incorporate well matched, high voltage JFETs on the same chip with standard bipolar transistors (BI-FET. Technology). The amplifier features low input bias and offset currents/low offset voltage and offset voltage drift, coupled with offset adjust which does not degrade drift or common-mode rejection. The LF356N is also designed for high slew rate, wide bandwidth, extremely fast settling time, low voltage and current noise and a low 1/f noise corner.

Parametrics

LF356N absolute maximum ratings: (1)Supply Voltage: ±22V; (2)Differential Input Voltage: ±40V; (3)Input Voltage Range: ±20V; (4)Output Short Circuit Duration: Continuous; (5)TJMAX: 150℃; (6)Power Dissipation at TA = 25℃: 560 mW; (7)Thermal Resistance (Typical), θJA: 160℃/W ; (8)Storage Temperature Range: -65 to +150℃; (9)Soldering Information (Lead Temp.): 300℃; (10)ESD tolerance: 1000V.

Features

LF356N features: (1)Replace expensive hybrid and module FET op amps; (2)Rugged JFETs allow blow-out free handling compared with MOSFET input devices; (3)Excellent for low noise applications using either high or low source impedance—very low 1/f corner; (4)Offset adjust does not degrade drift or common-mode rejection as in most monolithic amplifiers; (5)New output stage allows use of large capacitive loads (5,000 pF) without stability problems; (6)Internal compensation and large differential input voltage capability.

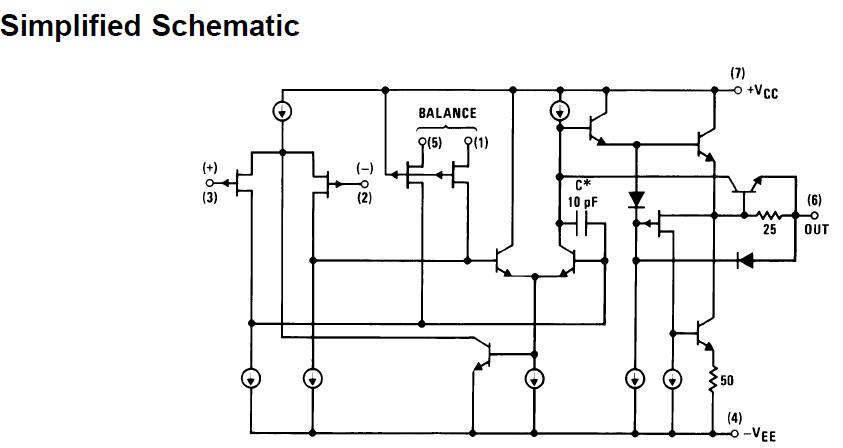

Diagrams

LF356N pin connection

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity

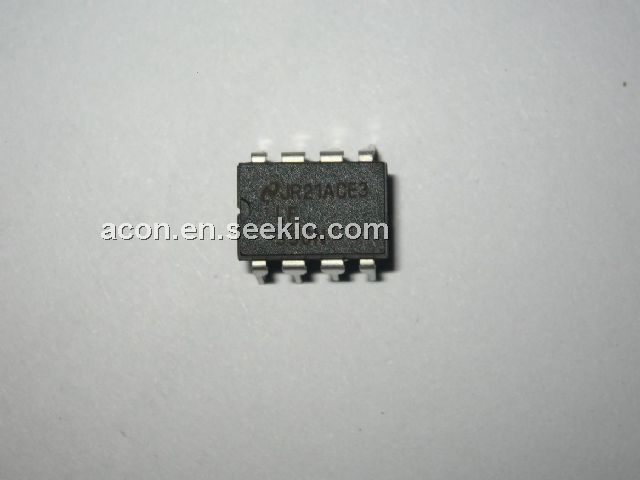

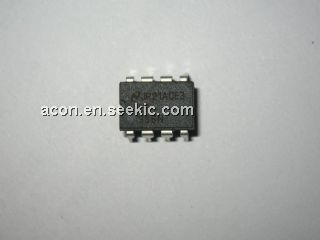

LF356N
LF356N
National Semiconductor (TI)
Operational Amplifiers - Op Amps
Data Sheet
0-1200: $0.29
1200-2520: $0.27
2520-5000: $0.26
5000-10000: $0.25
LF356N/NOPB
LF356N/NOPB
National Semiconductor (TI)
Operational Amplifiers - Op Amps JFET INPUT OP AMP
Data Sheet
0-1: $0.53
1-25: $0.43
25-100: $0.37
100-250: $0.33
