Product Summary
The MHW6342T is a 24 Vdc Supply, 40 to 550 MHz, CATV Forward Amplifier. It is suitable for CATV Systems Operating in the 40 to 550 MHz Frequency Range and Single Module High Gain Line Amplifier in Cable TV Distribution System.
Parametrics
MHW6342T absolute Maximum Ratings: (1)DC Supply Voltage, VCC: +28Vdc; (2)RF Input Voltage (Single Tone), Vin: +55dBmV; (3)Operating Case Temperature Range, TC: –20 to +100℃; (4)Storage Temperature Range, Tstg: – 40 to +100℃.
Features
MHW6342T features: (1)Specified for 77–Channel Performance; (2)Broadband Power Gain at f=40–550 MHz, Gp=34.5 dB (Typ) at 50 MHz, Gp=35.2 dB (Typ) at 550 MHz; (3)Broadband Noise Figure at 550 MHz, NF=5.5 dB (Typ); (4)Superior Gain, Return Loss and DC Current Stability with Temperature; (5)All Gold Metallization; (6)7 GHz Ion–Implanted Transistors.

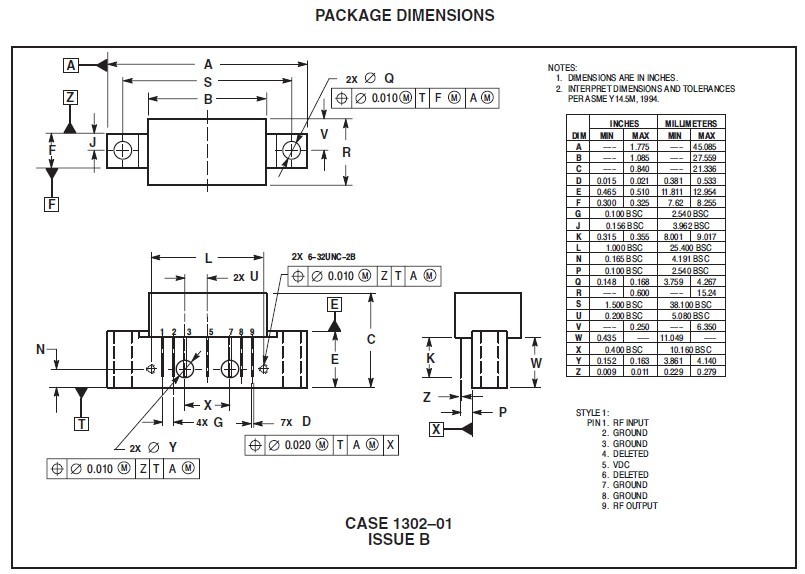

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 MHW6342T |
|
AMP CATV 77 CHANNEL CASE 1302-01 |
Data Sheet |
Negotiable |
|
||||
 |
MHW6342TN |
|
IC CATV AMP MOD 550MHZ 310MA 7P |
Data Sheet |
Negotiable |
|
||||
