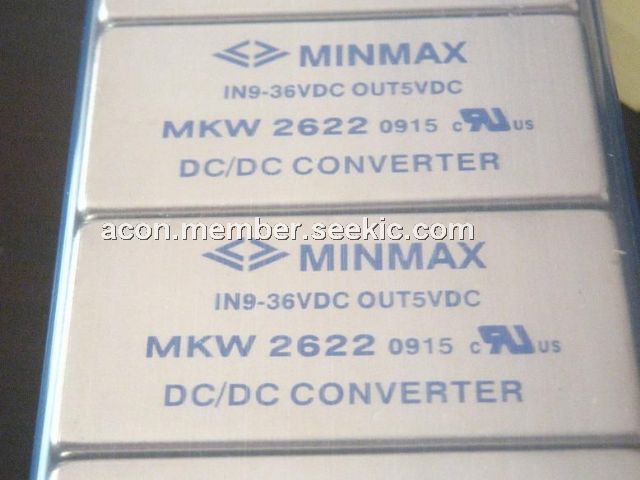

Product Summary

The Minmax MKW2622, comprising 16 different models, has been conceived as an DC/DC converter, specially addressing data communication equipments, mobile batter driven equipments, distributed power systems, telecommunication equipments, mixed analog/digital subsystems, process/machine control equipments, computer peripheral systems and industrial robot systems. Packing up to 15W of power into a 2x1x0.4 inch package, with efficiency as high as 86%, the MKW2622 has ultra-wide input ranges of 9-36VDC and 18-75VDC which is available in output voltages of 3.3V, 5V, 5.1V, 12V, 15V, ±5V, ±12V and ±15VDC. Other feathers of the MKW2622 include continuous short circuit protection, remote on/off, six-sided shielded case and EN55022 Class A conducted noise compliance minimize design-in time, cost and eliminate the need for external filtering.

Parametrics

MKW2622 absolute maximum ratings: (1)Input Surge Voltage(1000 mS): 24VDC Input Models: -0.7 to 50 VDC; 48VDC Input Models: -0.7 to 100 VDC; (2)Lead Temperature (1.5mm from case for 10 Sec.): 260℃ max; (3)Internal Power Dissipation: 5500 mW max.

Features

MKW2622 features: (1)Internal SMD Construction; (2)UL 94V-0 Package Material; (3)Remote On/Off Control; (4)Six-Sided Shielding; (5)Complies with EN55022 Class A; (6)UL1950 Safety Approval; (7)4:1 Wide Input Range; (8)MTBF > 700,000 Hours; (9)1500VDC Isolation; (10)Efficiency up to 86%.

Diagrams

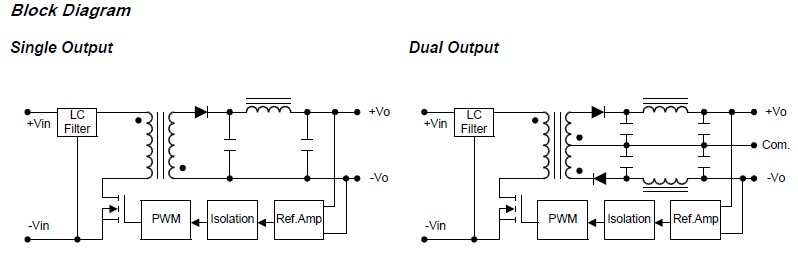

MKW2622 block diagram
