Product Summary

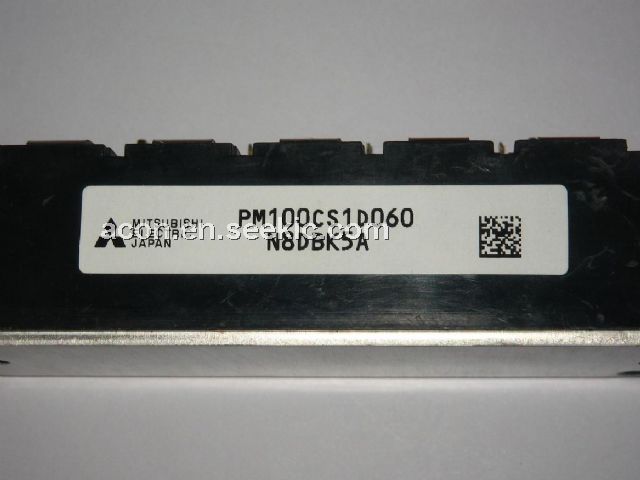

The PM100CS1D060 is an intelligent power modules flat-base type insulated package. Application is general purpose inverter, servo drives and other motor controls.

Parametrics

PM100CS1D060 absolute maximum ratings: (1)Collector-Emitter Voltage: 600 V; (2)Collector Current: 100 A; (3)Collector Current (Peak): 200 A; (4)Collector Dissipation: 446 W; (5)Junction Temperature: -20 to +150 ℃.

Features

PM100CS1D060 features: (1)3 phase 100A/600V CSTBT; (2)Monolithic gate drive & protection logic; (3)Detection, protection & status indication circuits for, shortcircuit, over-temperature & under-voltage.

Diagrams

PM100CS1D060 pin connection
