Product Summary
The STTA6006TV1 is a turboswitch ultra-fast high voltage diode.The turboswitch is a very high performance series of ultra-fast high voltage power diodes from 600V to 1200V.
Parametrics
STTA6006TV1 absolute maximum ratings: (1)Repetitive peak reverse voltage: 600 V; (2)Non repetitive peak reverse voltage: 600 V; (3)RMS forward current: 50 A; (4)Repetitive peak forward current tp=5ms F=5kHz square: 300 A; (5)Surge non repetitiveforward current tp=10ms sinusoidal: 230 A; (6)Maximum operating junction temperature: 150 °C; (7)Storage temperature range: -65 to 150 °C.
Features
STTA6006TV1 features: (1)Specificto freewheelmode operations: freewheel or boosterdiode; (2)Ultra-fast andsoft recovery; (3)Very low overall power losses in both the diode and the companion TRANSISTOR; (4)High frequency operations; (5)Insulatedpackage: ISOTOP& DOP3I electrical insulation : 2500VRms capacitance< 12 pF (DOP3I)capacitance< 45 pF (ISOTOP).
Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||
---|---|---|---|---|---|---|---|---|---|---|

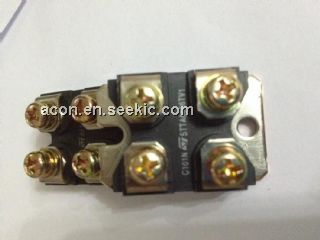

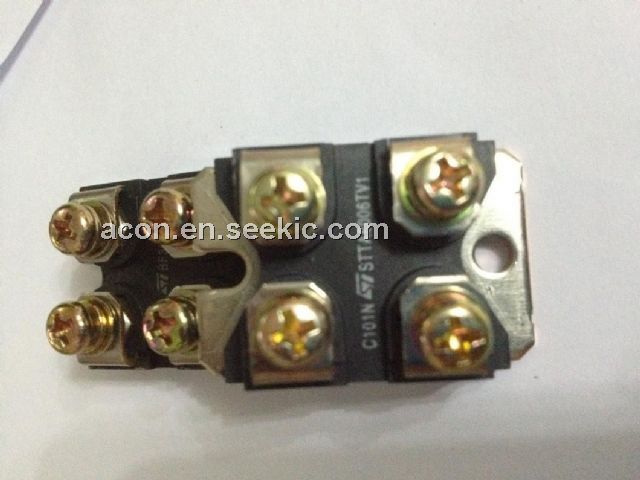

STTA6006TV1 |
STMicroelectronics |
Rectifiers 2x30 Amp 600 Volt |
Data Sheet |
Negotiable |
|
|||||
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||
STTA106/U |
Other |
Data Sheet |
Negotiable |
|
||||||
STTA106U |
STMicroelectronics |
Rectifiers 1.0 Amp 600 Volt |
Data Sheet |
Negotiable |
|
|||||
STTA112U |
DIODE ULTRA FAST 1200V 1A SMB |
Data Sheet |
Negotiable |
|
||||||
STTA12006TV1 |
STMicroelectronics |
Rectifiers 60/2X60 Amp 600 Volt |
Data Sheet |
Negotiable |
|
|||||
STTA12006TV2 |
Other |
Data Sheet |
Negotiable |
|
||||||
STTA1206D |
STMicroelectronics |
Rectifiers 12 Amp 600 Volt |
Data Sheet |
Negotiable |
|
