Product Summary
The integrated circuit U4083B is a low-power audio amplifier for telephone loudspeakers. It has differential speaker outputs to maximize the output swing at low supply voltages. There is no need for coupler capacitors. The U4083B has an open-loop gain of 80 dB where the closed-loop gain is adjusted with two external resistors. A chip disable pin permits powering down and/or muting the input signal.
Parametrics
U4083B absolute maximum ratings: (1)Supply voltage: –1.0 to +18 V; (2)Voltages: -1.0 to (VS + 1.0); (3)Disabled: -1.0 to (VS + 1.0)V; (4)Output current: ±250 mA; (5)Junction temperature: +140 °C; (6)Storage temperature range: –55 to +150 °C; (7)Ambient temperature range: –20 to +70 °C; (8)Power dissipation SO8: Tamb = 60°C: 440 mW.
Features
U4083B features: (1)Wide Operating Voltage Range: 2V to 16V; (2)Low Current Consumption: 2.7 mA Typically; (3)Chip Disable Input to Power Down the Integrated Circuit; (4)Low Power-down Quiescent Current; (5)Drives a Wide Range of Speaker Loads; (6)Output Power Po = 250 mW at RL = 32Ω (Speaker); (7)Low Harmonic Distortion (0.5% Typically); (8)Wide Gain Range: 0 dB to 46 dB.

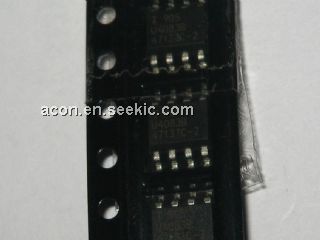

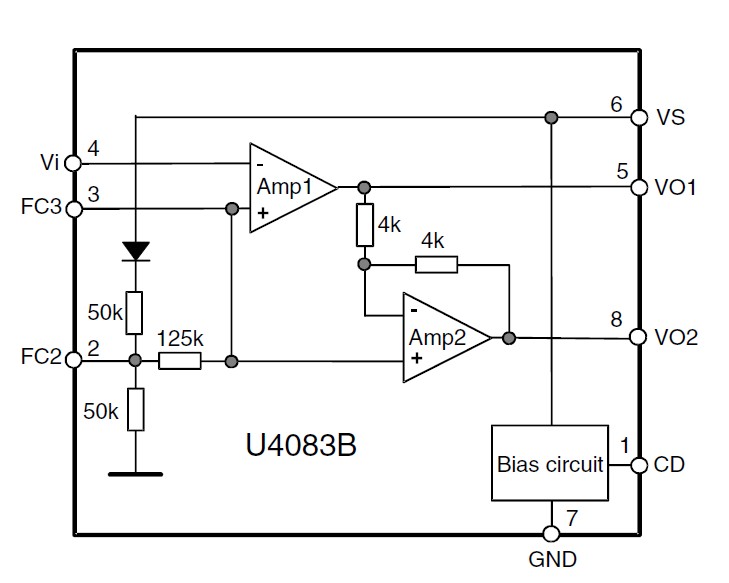

Diagrams
