Product Summary

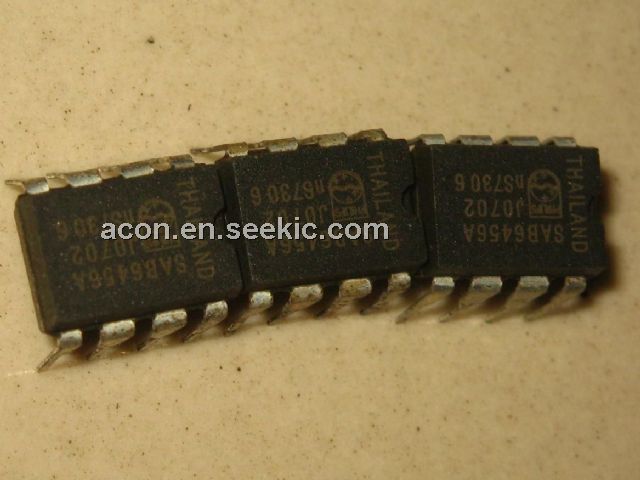

The SAB6456A is a prescaler for UHF/VHF tuners. It can be switched to divide-by-64 or divide-by-256 by the mode-control (MC) pin. The circuit has an input frequency range of 70 MHz to 1 GHz, has high input sensitivity and good harmonic suppression.

Parametrics

SAB6456A absolute maximum ratings: (1)Supply voltage: 7.0 V; (2)Input voltage: VCC V; (3)Storage temperature range: -55 to +150 ° C; (4)Junction temperature: +150 ° C.

Diagrams

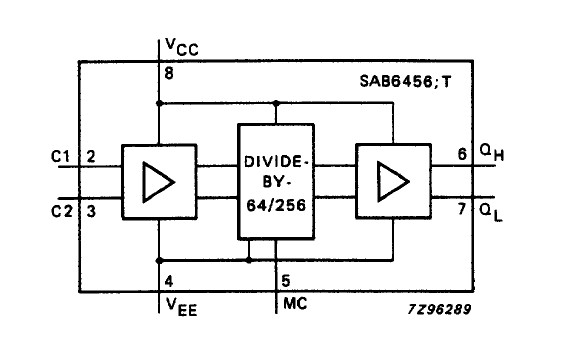

SAB6456A pin connection
