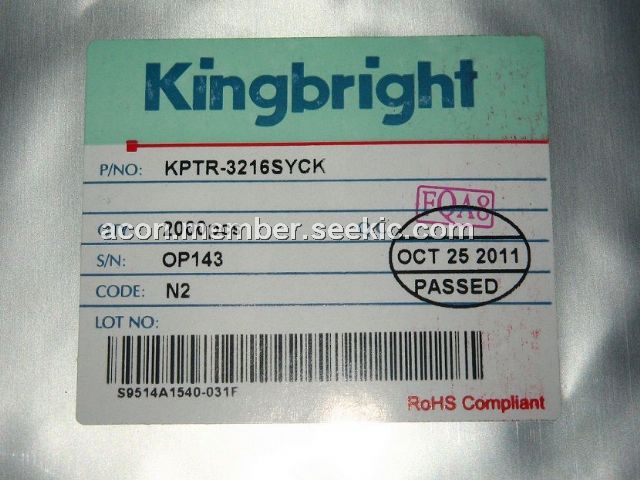

Product Summary

The KPTR-3216SYCK is a super bright yellow source color led. The KPTR-3216SYCK is made with DH InGaAlP on GaAs substrate light emitting diode.

Parametrics

KPTR-3216SYCK absolute maximum ratings: (1)Power dissipation: 125 mW; (2)DC Forward Current: 30 mA; (3)Peak Forward Current: 175 mA; (4)Reverse Voltage: 5 V; (5)Operating/Storage Temperature: -40℃ To +85℃.

Features

KPTR-3216SYCK features: (1)3.2mmx1.6mm smt led,1.05mm thickness.; (2)low power consumption.; (3)wide viewing angle.; (4)ideal for backlight and indicator.; (5)vavrious colors and lens types available.; (6)package : 2000pcs / reel.; (7)rohs compliant.

Diagrams

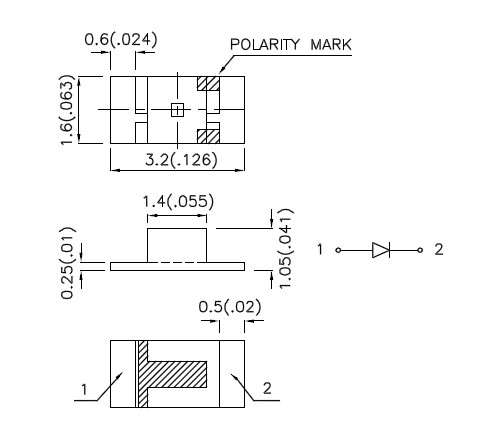

KPTR-3216SYCK pin connection
