Product Summary

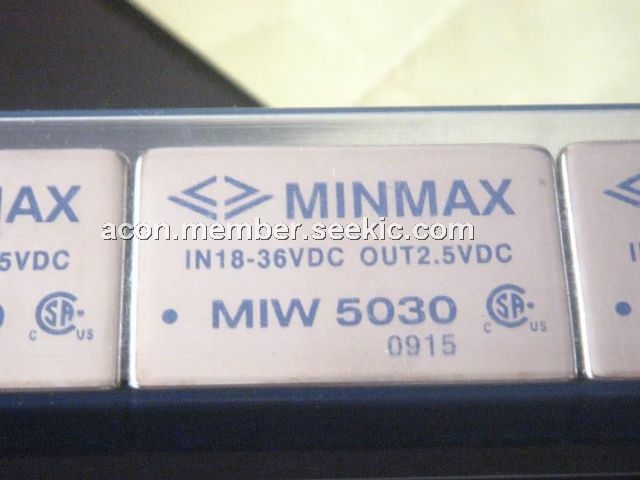

The Minmax MKW5030 power module is a low-profile dc-dc converter that operates over input voltage ranges of 18-36VDC and 36-75VDC which provide precisely regulated output voltages of 2.5V, 3.3V, 5V, 5.1V, 12V and 15VDC, specially addressing data communication equipments, mobile battery driven equipments, distributed power systems, telecommunication equipments, mixed analog/digital subsystems, process/machine control equipments, computer peripheral systems and industrial robot systems. Packing up to 30W of power into a 2x1x0.4inch package, with efficiencies as high as 88%, the MKW5030 includes continuous short circuit protection, overvoltage protection, output trim function, remote on/off, six-sided shielded case and EN55022 Class A conducted noise compliance minimize design-in time, cost and eliminate the need for external filtering.

Parametrics

MKW5030 absolute maximum ratings: (1)Input Surge Voltage(1000 mS): 24VDC Input Models: -0.7 to 50 VDC; 48VDC Input Models: -0.7 to 100 VDC; (2)Lead Temperature (1.5mm from case for 10 Sec.): 260℃ max; (3)Internal Power Dissipation: 5500 mW max.

Features

MKW5030 features: (1)Efficiency up to 88%; (2)Over Voltage Protection; (3)Soft Start; (4)Remote On/Off Control; (5)Six-Sided Shielding; (6)Complies with EN55022 Class A; (7)UL1950 Safety Approval; (8)2:1 Wide Input Range; (9)MTBF > 600,000 Hours; (10)1500VDC Isolation; (11)Output Trim.

Diagrams

MKW5030 block diagram

MKW5000
MKW5000

Other


Data Sheet

Negotiable
