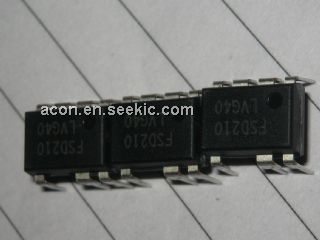

Product Summary
The FSD210 is a integrated Pulse Width Modulator (PWM) and Sense FET specially designed for high performance off-line Switch Mode Power Supplies (SMPS) with minimal external components. The FSD210 is monolithic high voltage power switching regulators which combine an LDMOS Sense FET with a voltage mode PWM control block.
Parametrics
FSD210 absolute maximum ratings: (1)Maximum Supply Voltage (FSD210), VCC,MAX: 20V; (2)Input Voltage Range, VFB: -0.3 to VSTOPV; (3)Operating Junction Temperature, TJ: +150℃; (4)Operating Ambient Temperature, TA: -25 to +85℃; (5)Storage Temperature Range, TSTG: -55 to +150℃.
Features
FSD210 features: (1)Single Chip 700V Sense FET Power Switch; (2)Precision Fixed Operating Frequency (134kHz); (3)Advanced Burst-Mode operation Consumes under 0.1W at 265Vac and no load (FSD210 only); (4)Internal Start-up Switch and Soft Start; (5)Under Voltage Lock Out (UVLO) with Hysteresis; (6)Pulse by Pulse Current Limit; (7)Over Load Protection (OLP); (8)Internal Thermal Shutdown Function (TSD); (9)Auto-Restart Mode; (10)Frequency Modulation for EMI; (11)FSD200 does not require an auxiliary bias winding.

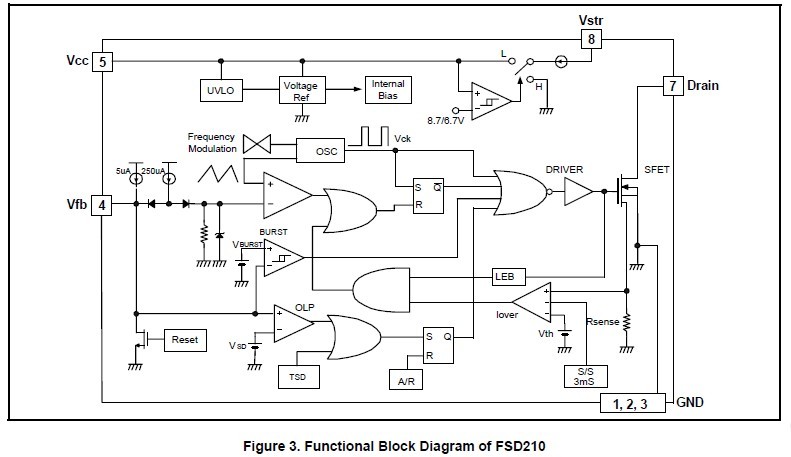

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 FSD210 |
Fairchild Semiconductor |
Power Switch ICs - Power Distribution SMPS Power Switch |
Data Sheet |
Negotiable |
|
||||||
|
FSD210B |
Fairchild Semiconductor |
Power Switch ICs - Power Distribution SMPS Power Switch for Chargers |
Data Sheet |
Negotiable |
|
||||||
|
FSD210BMX |
Fairchild Semiconductor |
Power Switch ICs - Power Distribution SMPS Power Switch for Chargers |
Data Sheet |
Negotiable |
|
||||||
|
FSD210BM |
Fairchild Semiconductor |
Power Switch ICs - Power Distribution POWER_CONVERSION |
Data Sheet |
Negotiable |
|
||||||
 |
FSD210HD |
|
IC SWIT PWM GREEN UVLO HV 8DIP |
Data Sheet |
|
|
||||||
