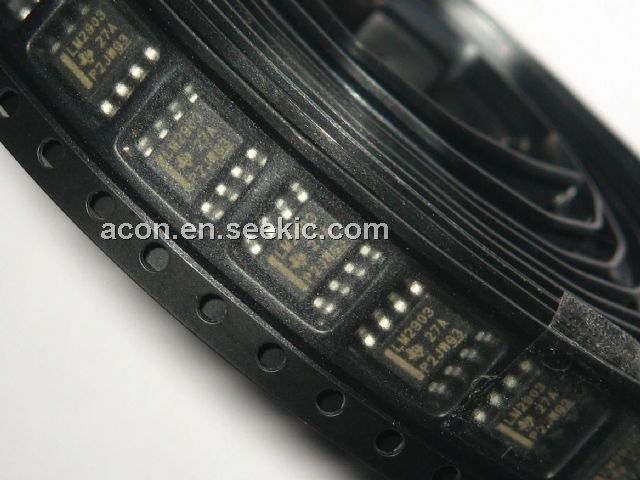

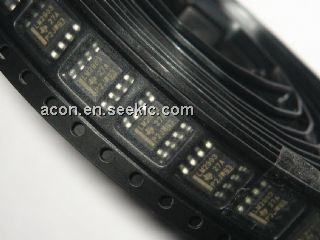

LM2903

LM2903, dual differential comparator, 36 V, 20 mA, 25 nA, 2 mV, COF

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.50~0.50 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 10 :	0.50 / Piece

PartNumber:: LM2903

Brand:: National Semiconductor - NS | Pack: COF | D/C: 10+

Availability:: Supply Ability: 5000/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. Laneya's store

(China (Mainland))

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-05-26

From Other Seller

Part Number:LM2903
US $0.50 - 0.50
LM2903DR

US $0.12 - 0.12 / Piece
(0) Remove
LM2903M

US $1.00 - 1.20 / Piece
(0) Remove
Quantity:

piece

Product Summary

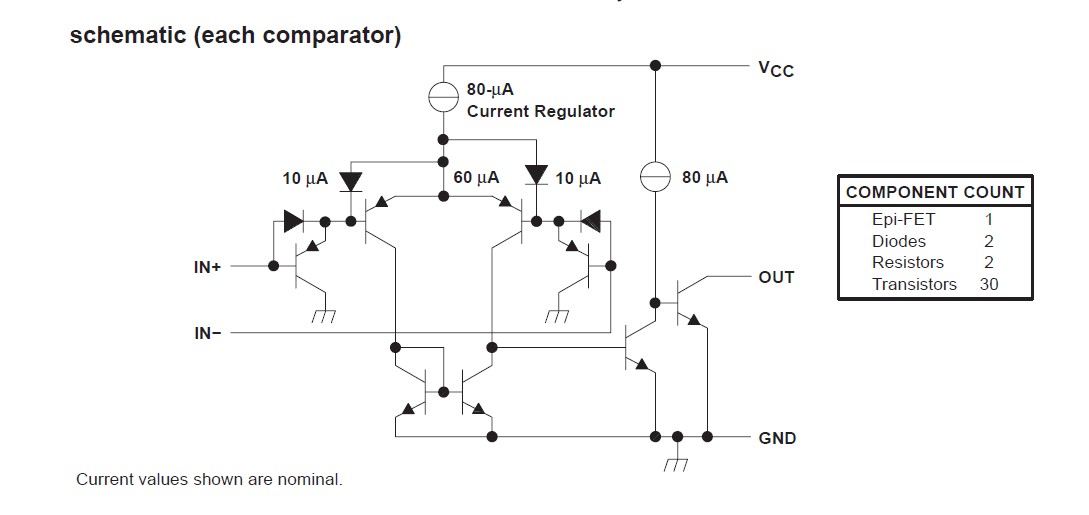

The LM2903 is a dual differential comparator. The LM2903 consists of two independent voltage comparators that are designed to operate from a single power supply over a wide range of voltages. Operation from dual supplies also is possible as long as the difference between the two supplies is 2 V to 36 V, and VCC is at least 1.5 V more positive than the input common-mode voltage. Current drain of the LM2903 is independent of the supply voltage. The outputs can be connected to other open-collector outputs to achieve wired-AND relationships.

Parametrics

LM2903 absolute maximum ratings: (1)Supply voltage, VCC: 36 V; (2)Differential input voltage, VID: ±36 V; (3)Input voltage range, VI (either input): 0.3 V to 36 V; (4)Output voltage, VO: 36 V; (5)Output current, IO: 20 mA; (6)Duration of output short-circuit to ground: Unlimited.

Features

LM2903 features: (1)Low Input Bias Current: 25 nA Typ; (2)Low Input Offset Current: 3 nA Typ; (3)Low Input Offset Voltage: 2 mV Typ; (4)Common-Mode Input Voltage Range Includes Ground; (5)Differential Input Voltage Range Equal to Maximum-Rated Supply Voltage ±36 V; (6)Low Output Saturation Voltage; (7)Output Compatible With TTL, MOS, and CMOS.
